Intercept+™ is distributed through CENTRIA®. Please click here for more information

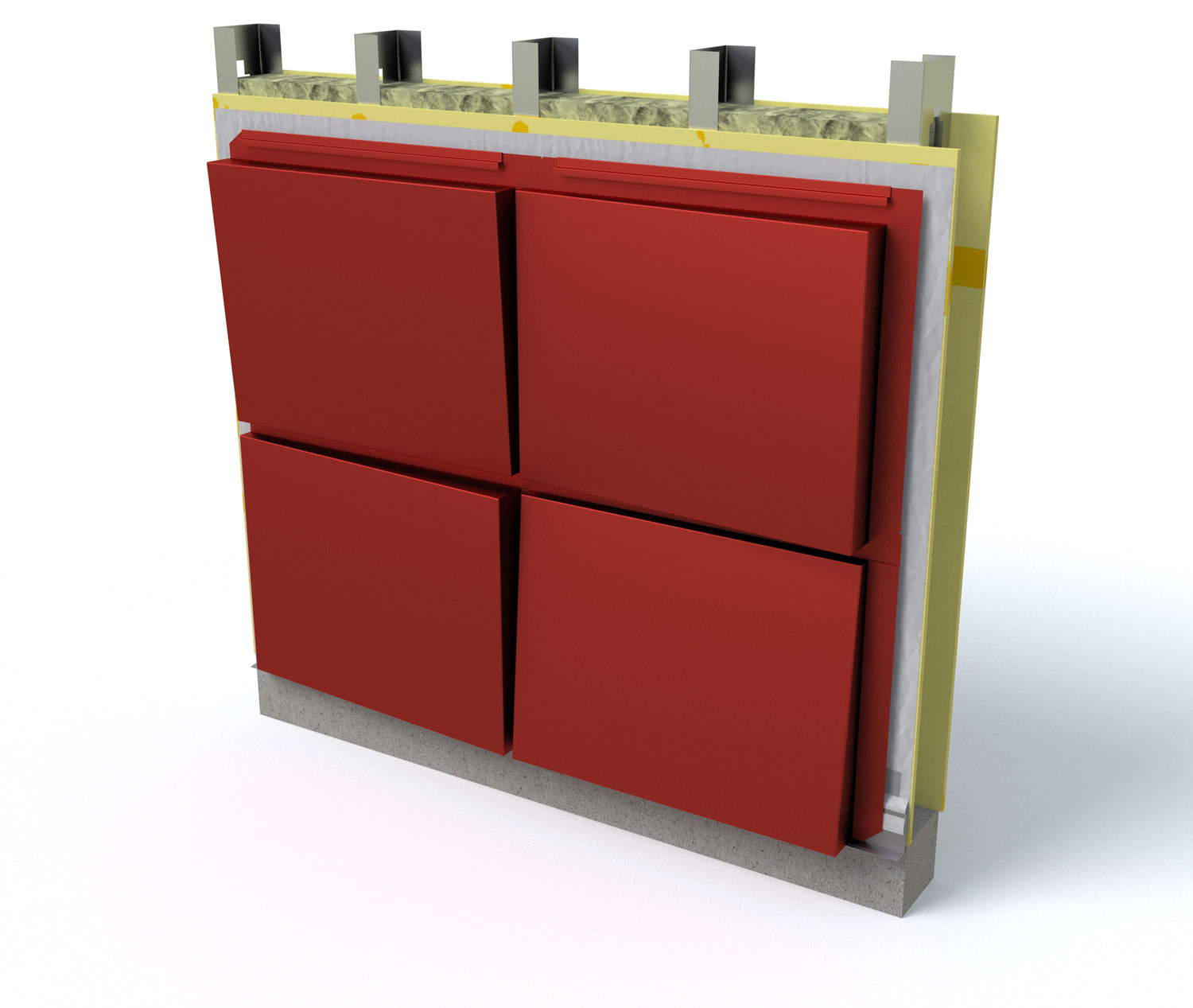

The INTERCEPT+™ RZR™ is a modular metal panel that offers unique sloped depth in both horizontal and vertical applications with concealed fastener attachment for exterior walls and soffits. Panels can vary from 1-3/8” deep to a maximum of 4” deep and are available in 0.060” thick aluminum. Standard vertical and horizontal panel joints are  3/4”  wide.  LVLZ™  integrates  seamlessly  with  INTERCEPT+™ RZR™ and Entyre™ for more dramatic plane changes. System design uses include but are not limited  to rainscreens, uninsulated screen walls, to INTERCEPT+™ RZR™ installed over an insulated composite backup panel system

Advantages & Benefits
  • Non-combustible
  • Multiple wall depths
  • Stacked bond panel grid
  • Corners of opposing sides reside on two different planes.
  • Tapered panel depths to match with depths of the Entyre™ and LVLZ™ panels.
  • Panels can be sloped L-R,
    R-L, T-B, or B-T
  • Horizontal & vertical panel modules
  • Perforating is not available
  • PVDF and anodized finishes available.
  • Integrates with Entyre™ and LVLZ™
  • Material and finish warranties
